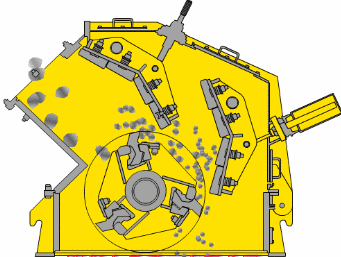

Working principle of Impact Crusher
Impact Crusher is a kind of crushing machine which is used for crushing of materials by using impacting energy. When the machine works, it drives the electro motor. The rotor will rotate with high speed. When the materials go into the action zone of the plate hammer, they will be struck and crushed on the plate of the rotor, and then crushed again. After they are thrown to the impacting device, the materials will bounce back from the impact lining board and go to the action zone of the plate hammer and are crushed again. This process will be proceeded repeatedly, and the materials go into the first, second and third impacting chamber to be crushed until they are crushed to the required granularity, and then discharged from the discharging mouth. Adjust the gap between the impacting rack, and the rotor can change the discharging granularity and the shape of the materials.

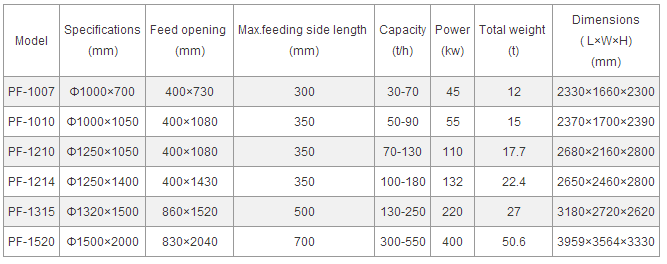

Technical data of Impact crusher
Customer Service
Testing
If ore sample is provided by customers, we may do free spectrum or other testing. The testing reported is conducted by Mineral Prospecting
Institute, and ranks the top in China.
Reagent Recipe
According to requirements for final products, we may provide free reagent ratio and dosage to customers.
Workflow
After knowing detailed information from customers, our technicians will provide the workflow and configuration for free.
Local Design
Our technicians will provide local design, layout, and tailing design for free after knowing detailed area of customers.
Guidance
Our engineer may provide 10 day’s training and guidance for free if necessary (including operation of machines, working notes and maintenance).
