Working principle of Cone Crusher
When Cone crusher is overloaded due to being through crushing chamber by materials which cannot be crushed or other reasons, the spring protection system of cone crusher will be realized and the ore discharging mouth will be increased. The foreign matters will be discharged from the crushing chamber, thus realizing protection. If the foreign matters are stuck at the discharging mouth, the spring protection system will start the chamber cleaning system and continue to increase the discharging mouth so that the foreign matters can be discharged from the crushing chamber of cone crusher. Under the function of the spring, the discharging mouth will be automatically reset and cone crusher will operate normally. This series of cone crusher is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher. The customers can choose different type according to specific needs.

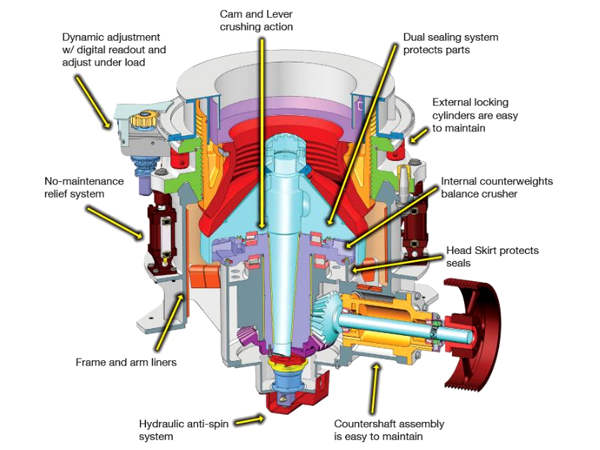

During operation, the motor drives the eccentric shaft to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

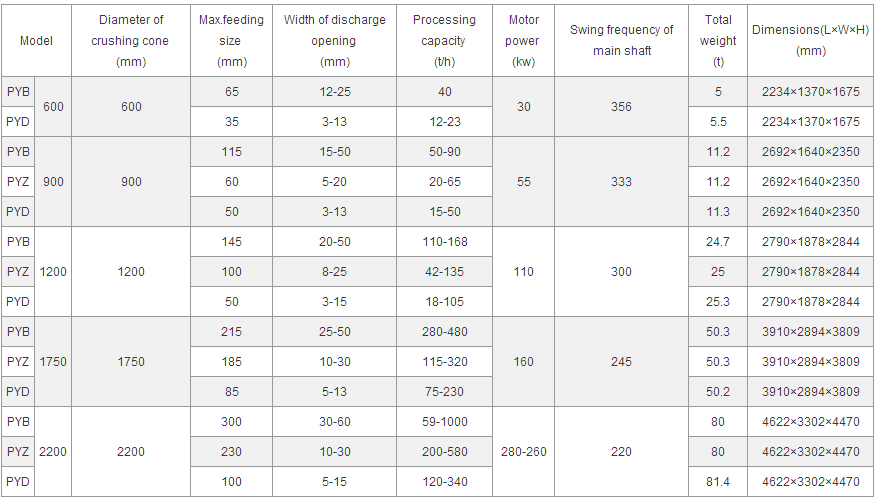

Technical data of cone crusher
Customer Service
Testing
If ore sample is provided by customers, we may do free spectrum or other testing. The testing reported is conducted by Mineral Prospecting Institute, and ranks the top in China.
Reagent Recipe
According to requirements for final products, we may provide free reagent ratio and dosage to customers.
Workflow
After knowing detailed information from customers, our technicians will provide the workflow and configuration for free.
Local Design
Our technicians will provide local design, layout, and tailing design for free after knowing detailed area of customers.
Guidance
Our engineer may provide 10 day’s training and guidance for free if necessary (including operation of machines, working notes and maintenance).
