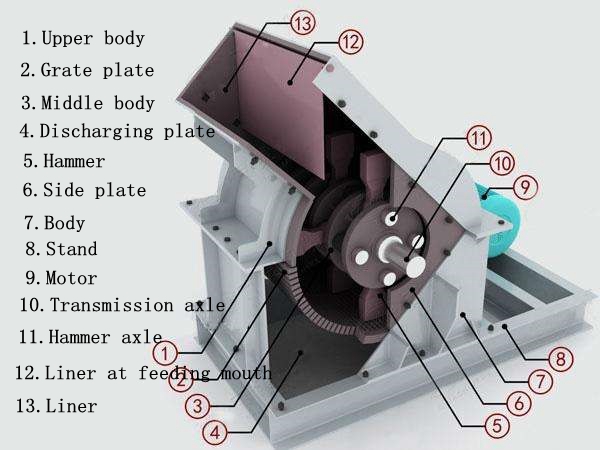

Working principle of Hammer Crusher
Hammer mill mainly crushes materials by the impact action. The electric motor drives the rotor fn the crushing cavity. Materials go into the machine body from the material mouth upside, and are crushed due to the impact force of the high speed moving hammers. Under the rotor, there is a lamina cribrosa, the crushed materials which are smaller than the size of mesh grade can discharge from the lamina cribrosa, while large-sized materials will be brought back to the crushing area by the hammers of the Hammer crusher to be re-crushed until they reached the required size, and then they can be discharged from the lamina cribrosa.

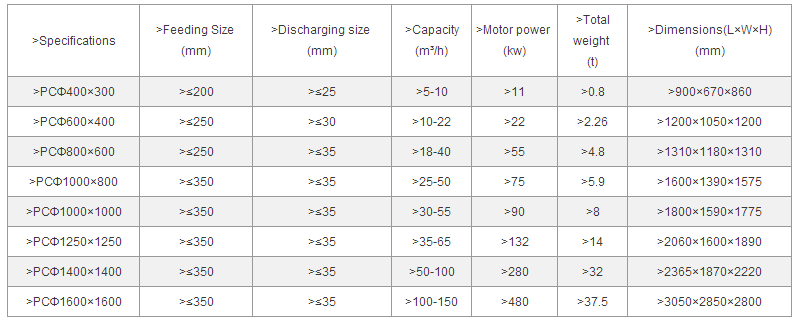

Technical data of hammer crusher
Customer Service
Testing
If ore sample is provided by customers, we may do free spectrum or other testing. The testing reported is conducted by Mineral Prospecting
Institute, and ranks the top in China.
Reagent Recipe
According to requirements for final products, we may provide free reagent ratio and dosage to customers.
Workflow
After knowing detailed information from customers, our technicians will provide the workflow and configuration for free.
Local Design
Our technicians will provide local design, layout, and tailing design for free after knowing detailed area of customers.
Guidance
Our engineer may provide 10 day’s training and guidance for free if necessary (including operation of machines, working notes and maintenan
